Industrial cutting tools > Taps

NPTF taps
Type   Str Flt
NPTF
Type of hole BH/TH
Surface BRIGHT
length of chamfer lead(thread) 1.5-2.5
Standrad ANSI B2.1
Application pipe thread,taper

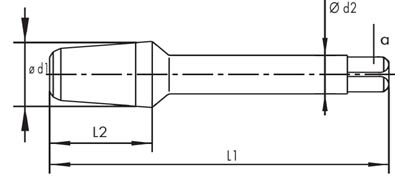

Size TPI l1 12*max d2 a Part number
inch inch inch inch inch inch
  1/8  27 2  1/8    3/4  0.437  0.328  1150101
  1/4  18 2  7/16 1  1/16 0.562  0.421  1150102
  3/8  18 2  9/16 1  1/16 0.700  0.531  1150103
  1/2  14 3  1/8  1  3/8  0.687  0.515  1150104
  3/4  14 3  1/4  1  3/8  0.906  0.679  1150105
1       11.5 3  3/4  1  3/4  1.125  0.843  1150106
1  1/4  11.5 4       1  3/4  1.312  0.984  1150107
