Industrial cutting tools > Taps

DIN machine taps

DIN Machine taps

Type   Str Flt Str Flt
Type of hole BH/TH BH/TH
Standard DIN371 DIN371
Flute 3 3
Surface BRIGHT TiN
Application General application General application

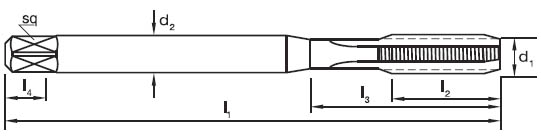

d1 Pitch l1 l2 l3 d2 sq drill pilot hole Part number Part number
mm mm mm mm mm mm mm mm
M2 0.4 45 8 - 2.8  2.1  1.6 1539001 1539021
M2.2 0.45 45 9 - 2.8  2.1  1.75 1539002 1539022
M2.3 0.4 45 9 - 2.8  2.1  1.9 1539003 1539023
M2.5 0.45 50 9 - 2.8  2.1  2.05 1539004 1539024
M3 0.5 56 11 18 3.5  2.7  2.5 1539005 1539025
M3.5 0.6 56 13 20 4.0  3.0  2.9 1539006 1539026
M4 0.7 63 13 21 4.5  3.4  3.3 1539007 1539027
M5 0.8 70 16 25 6.0  4.9  4.2 1539008 1539028
M6 1.0  80 19 30 6.0  4.9  5 1539009 1539029
M7 1.0  80 19 30 7.0  5.5  6 1539010 1539030
M8 1.25 90 22 35 8.0  6.2  6.8 1539011 1539031
M10 1.5 100 24 39 10.0  8.0  8.5 1539012 1539032
